AT73C204
Functional Description
300 mA/1.9V/2.5V DC-to-
DC Converter for
Co-processor Core
This DC-to-DC converter is a synchronous mode DC-to-DC “buck”-switched regulator
using fixed- frequency architecture (PWM) and capable of providing 300 mA of continu-
ous current. It has two levels of voltage programming for the co-processor core (1.9V or
2.5V). The operating supply range is from 3.1V to 4.2V, making it suitable for Li-Ion, Li-
polymer or Ni-MH battery applications. This DC-to-DC converter is based on the pulse
width modulation architecture to control the noise perturbation for switching noise sensi-
tive applications (GSM). The operating frequency is set to 900 KHz using an internal
clock, allowing the use of small surface inductor and moderate output voltage ripple.
The controller consists of a reference ramp generator, a feedback comparator, the logic
driver used to drive the internal switches, the feedback circuits used to manage the dif-
ferent modes of operation and the over-current protection circuits. An economic mode
has been defined to reduce quiescent current. A low-dropout voltage regulator in paral-
lel to the DC-to-DC converter minimizes standby current consumption during standby
mode.

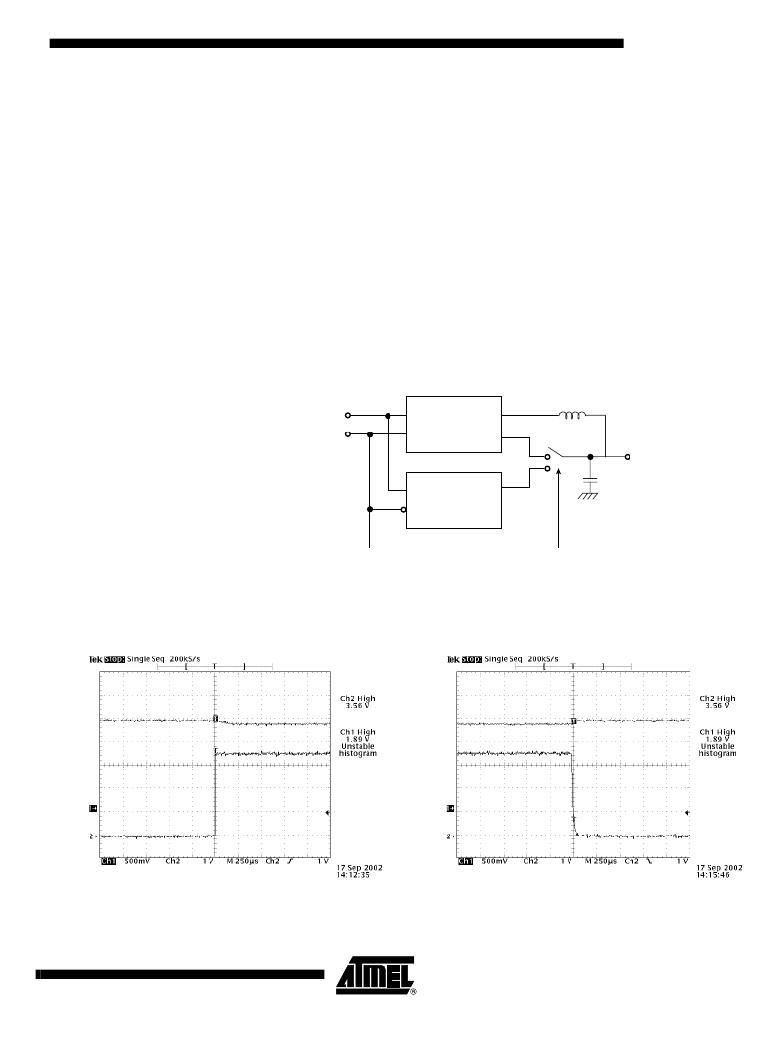

Figure 4. Dual-power DC-to-DC Converter
V BAT
DM
DC-to-DC Buck
1.9V or 2.5V
300 mA
Internal FET
LDO
L
C
V OUT0
1.9V or 2.5V
10 mA
Low Power
Low undershoot voltage is expected when going from PWM to LDO mode and vice-
versa. The circuit is designed in order to avoid any spikes when transition between two
modes is enabled.
Figure 5. Low-power/Full-power DC-to-DC Converter Transition
V OUT0
V OUT0
DM
High Power
Low Power
DM
High Power
Low Power
7
6014A–PMGMT–10/03
